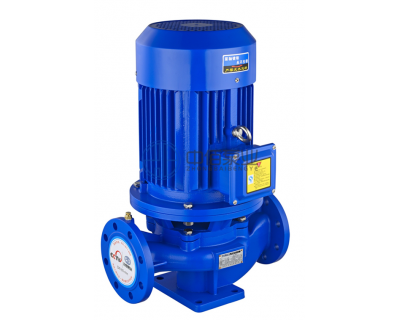

ISG型立式管道離心泵
- 質量穩定:全程質量監控,細致入微,全方位檢測,保證產品質量!
- 交貨快捷:先進生產流水線,備貨充足,常規產品全部倉庫現貨供應!
- 專業定制:高級工程師專業選型報價,各種材質非標產品皆可洽談定做!
銷售熱線
023-68691718
- 產品概述
- 性能參數
- 適用范圍
- 安裝尺寸
- 文檔下載
ISG型立式管道離心泵--產品概述
ISG型立式管道離心泵,是本單位科技人員聯合國內水泵專家選用優秀水力模型,采用IS型離心泵之性能參數,在一般立式泵的基礎上進行巧妙組合設計而成。同時根據使用溫度、介質等不同在ISG型基礎上派出適用熱水、高溫、腐蝕性化工泵、油泵。該系列產品具有高效節能、噪音低、性能可靠等優點。
ISG型立式管道離心泵--型號意義
1、泵為立式結構,進出口口徑相同,且位于同一中心線上,可象閥門一樣安裝于管路之中,外形緊湊美觀,占地面積小,建筑投入低,如加上防護罩則可置于戶外使用。
2、葉輪直接安裝在電機的加長軸上,軸向尺寸短,結構緊湊,泵與電機軸承配置合理,能有效地平衡泵運轉產生的徑向和軸向負荷,從而保證了泵的運行平穩,振動小、噪音低。
3、軸封采用機械密封或機械密封組合,采用進口鈦合金密封環、中型耐高溫機械密封和采用硬質合金材質,耐磨密封,能有效地延長機械密封的使用壽命。
4、安裝檢修方便,無需拆動管道路系統,只要卸下泵聯體座螺母即可抽出全部轉子部件。
5、可根據使用要求即流量和揚程的需要采用泵的串、并聯運行方式。
6、可根據管路布置的要求采用泵的豎式和橫式安裝。
ISG型立式管道離心泵--結構圖
ISG型立式管道離心泵--結構圖
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
15-80 | 15 | 1.1 | 0.3 | 8.5 | 26 | 2800 | 0.18 | 2.3 |
1.5 | 0.42 | 8 | 34 | |||||
2 | 0.55 | 7 | 34 | |||||
20-110 | 20 | 1.8 | 0.5 | 16 | 25 | 2800 | 0.37 | 2.3 |
2.5 | 0.69 | 15 | 34 | |||||
3.3 | 0.91 | 13.5 | 35 | |||||
20-160 | 20 | 1.8 | 0.5 | 33 | 19 | 2900 | 0.75 | 2.3 |
2.5 | 0.69 | 32 | 25 | |||||
3.3 | 0.91 | 30 | 23 | |||||
25-110 | 25 | 2.8 | 0.78 | 16 | 34 | 2900 | 0.55 | 2.3 |
4 | 1.11 | 15 | 42 | |||||
5.2 | 1.44 | 13.5 | 41 | |||||
25-125 | 25 | 2.8 | 0.78 | 20.6 | 28 | 2900 | 0.75 | 2.3 |
4 | 1.11 | 20 | 36 | |||||
5.2 | 1.44 | 18 | 35 | |||||
25-125A | 25 | 2.5 | 0.69 | 17 | 35 | 2900 | 0.55 | 2.3 |
3.6 | 1 | 16 | ||||||
4.6 | 1.28 | 14.4 | ||||||
25-160 | 25 | 2.8 | 0.78 | 33 | 24 | 2900 | 1.5 | 2.3 |
4 | 1.11 | 32 | 32 | |||||
5.2 | 1.44 | 30 | 33 | |||||
25-160A | 25 | 2.6 | 0.12 | 29 | 31 | 2900 | 1.1 | 2.3 |
3.7 | 1.03 | 28 | ||||||
4.9 | 1.36 | 26 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
32-100(I) | 32 | 4.4 | 1.22 | 13.2 | 48 | 2900 | 0.75 | 2 |
6.3 | 1.75 | 12.5 | 54 | |||||
8.3 | 2.32 | 11.3 | 53 | |||||
32-125 | 32 | 3.5 | 0.97 | 22 | 40 | 2900 | 0.75 | 2.3 |
5 | 0.39 | 20 | 44 | |||||
6.5 | 1.8 | 18 | 42 | |||||
32-125A | 32 | 3.1 | 0.86 | 17.6 | 43 | 2900 | 0.55 | 2.3 |
4.5 | 1.25 | 16 | ||||||
5.8 | 1.61 | 14.4 | ||||||
32-160(I) | 32 | 4.4 | 1.22 | 33.2 | 34 | 2900 | 2.2 | 2 |
6.3 | 1.75 | 32 | 40 | |||||
8.3 | 2.32 | 30.2 | 42 | |||||
32-200(I) | 32 | 4.4 | 1.22 | 50.5 | 26 | 2900 | 4 | 2 |
6.3 | 1.75 | 50 | 33 | |||||
8.3 | 2.32 | 48 | 35 | |||||
32-200A | 32 | 2.8 | 0.78 | 44.6 | 34 | 2900 | 2.2 | 2 |
4 | 1.11 | 44 | 40 | |||||
5.2 | 1.44 | 42.7 | 42 | |||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
40-100 | 40 | 4.4 | 1.22 | 13.2 | 48 | 2900 | 0.55 | 2.3 |
6.3 | 1.75 | 12.5 | 54 | |||||
8.3 | 2.31 | 11.3 | 53 | |||||
40-100A | 40 | 3.9 | 1.08 | 10.6 | 52 | 2900 | 0.37 | 2.3 |
5.6 | 1.56 | 10 | ||||||
7.4 | 2.06 | 9 | ||||||
40-125 | 40 | 4.4 | 1.22 | 21 | 41 | 2900 | 1.1 | 2.3 |
6.3 | 1.75 | 20 | 46 | |||||
8.3 | 2.31 | 18 | 43 | |||||
40-125A | 40 | 3.9 | 1.08 | 17.6 | 40 | 2900 | 0.75 | 2.3 |
5.6 | 1.56 | 16 | 45 | |||||
7.4 | 2.06 | 14.4 | 41 | |||||
40-160 | 40 | 4.4 | 1.22 | 33 | 35 | 2900 | 2.2 | 2.3 |
6.3 | 1.75 | 32 | 40 | |||||
8.3 | 2.31 | 30 | 40 | |||||
40-160A | 40 | 4.1 | 1.14 | 29 | 34 | 2900 | 1.5 | 2.3 |
5.9 | 1.64 | 28 | 39 | |||||
7.8 | 2.17 | 26.3 | 39 | |||||
40-160B | 40 | 3.8 | 1.06 | 25.5 | 34 | 2900 | 1.1 | 2.3 |
5.5 | 1.53 | 24 | 38 | |||||
7.2 | 2 | 22.5 | 37 | |||||
40-200 | 40 | 4.4 | 1.22 | 51 | 26 | 2900 | 4 | 2.3 |
6.3 | 1.75 | 50 | 33 | |||||
8.3 | 2.31 | 48 | 32 | |||||
40-200A | 40 | 4.1 | 1.14 | 45 | 26 | 2900 | 3 | 2.3 |
5.9 | 1.64 | 44 | 31 | |||||
7.8 | 2.17 | 42 | 30 | |||||
40-200B | 40 | 3.7 | 1.03 | 38 | 29 | 2900 | 2.2 | 2.3 |
5.3 | 1.47 | 36 | ||||||
7 | 1.94 | 34.5 | ||||||
40-250 | 40 | 4.4 | 1.22 | 82 | 24 | 2900 | 7.5 | 2.3 |
6.3 | 1.75 | 80 | 28 | |||||
8.3 | 2.31 | 74 | 28 | |||||
40-250A | 40 | 4.1 | 1.14 | 72 | 24 | 2900 | 5.5 | 2.3 |
5.9 | 1.64 | 70 | 28 | |||||
7.8 | 2.17 | 65 | 27 | |||||
40-250B | 40 | 3.8 | 1.06 | 61.5 | 23 | 2900 | 4 | 2.3 |
5.5 | 1.53 | 60 | 27 | |||||
7 | 1.94 | 56 | 26 | |||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
40-100(I) | 40 | 8.8 | 2.44 | 13.2 | 55 | 2900 | 1.1 | 2.3 |
12.5 | 3.47 | 12.5 | 62 | |||||
16.3 | 4.53 | 11.3 | 60 | |||||
40-100(I)A | 40 | 8 | 2.22 | 10.6 | 60 | 2900 | 0.75 | 2.3 |
11 | 3.05 | 10 | ||||||
14.5 | 4.03 | 9 | ||||||
40-125(I) | 40 | 8.8 | 2.44 | 21.2 | 49 | 2900 | 1.5 | 2.3 |
12.5 | 3.47 | 20 | 58 | |||||
16.3 | 4.53 | 17.8 | 57 | |||||
40-125(I)A | 40 | 8 | 2.22 | 17 | 57 | 2900 | 1.1 | 2.3 |
11 | 3.05 | 16 | ||||||
14.5 | 4.03 | 14 | ||||||
40-160(I) | 40 | 8.8 | 2.44 | 33 | 45 | 2900 | 3 | 2.3 |
12.5 | 3.47 | 32 | 52 | |||||
16.3 | 4.53 | 30 | 51 | |||||
40-160(I)A | 40 | 8.2 | 2.28 | 29 | 44 | 2900 | 2.2 | 2.3 |
11.7 | 3.25 | 28 | 51 | |||||
15.2 | 4.22 | 26 | 50 | |||||
40-160(I)B | 40 | 7.3 | 2.38 | 23 | 50 | 2900 | 1.5 | 2.3 |
10.4 | 2.89 | 22 | ||||||
13.5 | 3.75 | 20.5 | ||||||
40-200(I) | 40 | 8.8 | 2.44 | 51.2 | 38 | 2900 | 5.5 | 2.3 |
12.5 | 3.47 | 50 | 46 | |||||
16.3 | 4.53 | 48 | 46 | |||||
40-200(I)A | 40 | 8.3 | 2.31 | 45 | 37 | 2900 | 4 | 2.3 |
11.7 | 3.25 | 44 | 45 | |||||
15.3 | 4.25 | 42 | 45 | |||||
40-200(I)B | 40 | 7.5 | 2.08 | 37 | 44 | 2900 | 3 | 2.3 |
10.6 | 2.94 | 36 | ||||||
13.8 | 3.83 | 34 | ||||||
40-250(I) | 40 | 8.8 | 2.44 | 81.2 | 31 | 2900 | 11 | 2.3 |
12.5 | 3.47 | 80 | 38 | |||||
16.3 | 4.53 | 77.5 | 40 | |||||
40-250(I)A | 40 | 8.2 | 2.28 | 71 | 38 | 2900 | 7.5 | 2.3 |
11.6 | 3.22 | 70 | ||||||
15.2 | 4.22 | 68 | ||||||
40-250(I)B | 40 | 7.6 | 2.11 | 61.4 | 37 | 2900 | 7.5 | 2.3 |
10.8 | 3 | 60 | ||||||
14 | 3.89 | 58 | ||||||
40-250(I)C | 40 | 7.1 | 1.97 | 53.2 | 36 | 2900 | 5.5 | 2.3 |
10 | 2.78 | 52 | ||||||
13.1 | 3.64 | 50.4 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
50-100 | 50 | 8.8 | 2.44 | 13.6 | 55 | 2900 | 1.1 | 2.3 |
12.5 | 3.47 | 12.5 | 62 | |||||
16.3 | 4.53 | 11.3 | 60 | |||||
50-100A | 50 | 8 | 2.22 | 11 | 60 | 2900 | 0.75 | 2.3 |
11 | 3.05 | 10 | ||||||
14.5 | 4.03 | 9 | ||||||
50-125 | 50 | 8.8 | 2.44 | 21.5 | 49 | 2900 | 1.5 | 2.3 |
12.5 | 3.47 | 20 | 58 | |||||
16.3 | 4.53 | 17.8 | 57 | |||||
50-125A | 50 | 8 | 2.22 | 17 | 57 | 2900 | 1.1 | 2.3 |
11 | 3.05 | 16 | ||||||
14.5 | 4.03 | 14 | ||||||
50-160 | 50 | 8.8 | 2.44 | 33 | 45 | 2900 | 3 | 2.3 |
12.5 | 3.47 | 32 | 52 | |||||
16.3 | 4.53 | 30 | 51 | |||||
50-160A | 50 | 8.2 | 2.28 | 29 | 44 | 2900 | 2.2 | 2.3 |
11.7 | 3.25 | 28 | 51 | |||||
15.2 | 4.22 | 26 | 50 | |||||
50-160B | 50 | 7.3 | 2.38 | 23 | 50 | 2900 | 1.5 | 2.3 |
10.4 | 2.89 | 22 | ||||||
13.5 | 3.75 | 20.5 | ||||||
50-200 | 50 | 8.8 | 2.44 | 52 | 38 | 2900 | 5.5 | 2.3 |
12.5 | 3.47 | 50 | 46 | |||||
16.3 | 4.53 | 48 | 46 | |||||
50-200A | 50 | 8.3 | 2.31 | 45.8 | 37 | 2900 | 4 | 2.3 |
11.7 | 3.25 | 44 | 45 | |||||
15.3 | 4.25 | 42 | 45 | |||||
50-200B | 50 | 7.5 | 2.08 | 37 | 44 | 2900 | 3 | 2.3 |
10.6 | 2.94 | 36 | ||||||
13.8 | 3.83 | 34 | ||||||
50-250 | 50 | 8.8 | 2.44 | 82 | 29 | 2900 | 11 | 2.3 |
12.5 | 3.47 | 80 | 38 | |||||
16.3 | 4.53 | 77.5 | 40 | |||||
50-250A | 50 | 8.2 | 2.28 | 71.5 | 38 | 2900 | 7.5 | 2.3 |
11.6 | 3.22 | 70 | ||||||
15.2 | 4.22 | 68 | ||||||
50-250B | 50 | 7.6 | 2.11 | 61.4 | 37 | 2900 | 7.5 | 2.3 |
10.8 | 3 | 60 | ||||||
14 | 3.89 | 58 | ||||||
50-250C | 50 | 7.1 | 1.97 | 53.2 | 36 | 2900 | 5.5 | 2.3 |
10 | 2.78 | 52 | ||||||
13.1 | 3.64 | 50.4 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
50-100(I) | 50 | 17.5 | 4.86 | 13.7 | 67 | 2900 | 1.5 | 2.5 |
25 | 6.94 | 12.5 | 69 | |||||
32.5 | 9.03 | 10.5 | 69 | |||||
50-100(I)A | 50 | 15.6 | 4.3 | 11 | 65 | 2900 | 1.1 | 2.5 |
22.3 | 6.19 | 10 | 67 | |||||
29 | 8.1 | 8.4 | 68 | |||||
50-125(I) | 50 | 17.5 | 4.86 | 21.5 | 60 | 2900 | 3 | 2.5 |
25 | 6.94 | 20 | 68 | |||||
32.5 | 9.03 | 18 | 67 | |||||
50-125(I)A | 50 | 15.6 | 4.33 | 17 | 58 | 2900 | 2.2 | 2.5 |
22.3 | 6.19 | 16 | 66 | |||||
29 | 8.1 | 13.6 | 65 | |||||
50-160(I) | 50 | 17.5 | 4.68 | 34.4 | 54 | 2900 | 4 | 2.5 |
25 | 6.94 | 32 | 63 | |||||
32.5 | 9.03 | 27.5 | 60 | |||||
50-160(I)A | 50 | 16.4 | 4.56 | 30 | 54 | 2900 | 4 | 2.5 |
23.4 | 6.5 | 28 | 62 | |||||
30.4 | 8.44 | 24 | 59 | |||||
50-160(I)B | 50 | 15 | 4.17 | 26 | 58 | 2900 | 3 | 2.5 |
21.6 | 6 | 24 | ||||||
28 | 7.78 | 20.6 | ||||||
50-200(I) | 50 | 17.5 | 4.86 | 52.7 | 49 | 2900 | 7.5 | 2.5 |
25 | 6.94 | 50 | 58 | |||||
32.5 | 9.03 | 45.5 | 59 | |||||
50-200(I)A | 50 | 16.4 | 4.56 | 46.4 | 48 | 2900 | 7.5 | 2.5 |
23.5 | 6.53 | 44 | 57 | |||||
30.5 | 8.47 | 40 | 58 | |||||
50-200(I)B | 50 | 15.2 | 4.22 | 40 | 55 | 2900 | 5.5 | 2.5 |
21.8 | 6.06 | 38 | ||||||
28.3 | 7.86 | 34.5 | ||||||
50-250(I) | 50 | 17.5 | 4.86 | 82 | 39 | 2900 | 15 | 2.5 |
25 | 6.94 | 80 | 50 | |||||
32.5 | 9.03 | 76.5 | 52 | |||||
50-250(I)A | 50 | 16.4 | 4.56 | 71.5 | 39 | 2900 | 11 | 2.5 |
23.4 | 6.5 | 70 | 50 | |||||
30.5 | 8.47 | 67 | 52 | |||||
50-250(I)B | 50 | 15 | 4.17 | 61 | 38 | 2900 | 11 | 2.5 |
21.6 | 6 | 60 | 49 | |||||
28 | 7.78 | 57.4 | 54 | |||||
50-315(I) | 50 | 17.5 | 4.86 | 128 | 30 | 2900 | 30 | 2.5 |
25 | 6.94 | 125 | 40 | |||||
32.5 | 9.03 | 122 | 44 | |||||
50-315(I)A | 50 | 16.6 | 4.61 | 115 | 30 | 2900 | 22 | 2.5 |
23.7 | 6.58 | 113 | 40 | |||||
31 | 8.6 | 110 | 44 | |||||
50-315(I)B | 50 | 15.7 | 4.36 | 103 | 39 | 2900 | 18.5 | 2.5 |
22.5 | 6.25 | 101 | ||||||
29.2 | 8 | 98 | ||||||
50-315(I)C | 50 | 14.4 | 4 | 86 | 38 | 2900 | 15 | 2.5 |
20.6 | 5.72 | 85 | ||||||
26.8 | 7.44 | 83 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
m3/h | L/S | m | % | r/min | KW | (NPSH)r | ||
65-100 | 65 | 17.5 | 4.86 | 13.7 | 67 | 2900 | 1.5 | 2.5 |
25 | 6.94 | 12.5 | 69 | |||||
32.5 | 9.03 | 10.5 | 69 | |||||
65-100A | 65 | 15.6 | 4.3 | 11 | 65 | 2900 | 1.1 | 2.5 |
22.3 | 6.19 | 10 | 67 | |||||
29 | 8.1 | 8.4 | 68 | |||||
65-125 | 65 | 17.5 | 4.86 | 21.5 | 60 | 2900 | 3 | 2.5 |
25 | 6.94 | 20 | 68 | |||||
32.5 | 9.03 | 18 | 67 | |||||
65-125A | 65 | 15.6 | 4.33 | 17 | 58 | 2900 | 2.2 | 2.5 |
22.3 | 6.19 | 16 | 66 | |||||
29 | 8.1 | 14.4 | 65 | |||||
65-160 | 65 | 17.5 | 4.86 | 34.4 | 54 | 2900 | 4 | 2.5 |
25 | 6.94 | 32 | 63 | |||||
32.5 | 9.03 | 27.5 | 60 | |||||
65-160A | 65 | 16.4 | 4.56 | 30 | 54 | 2900 | 4 | 2.5 |
23.4 | 6.5 | 28 | 62 | |||||
30.4 | 8.44 | 24 | 59 | |||||
65-160B | 65 | 15 | 4.17 | 26 | 58 | 2900 | 3 | 2.5 |
21.6 | 6 | 24 | ||||||
28 | 7.78 | 20.6 | ||||||
65-200 | 65 | 17.5 | 4.86 | 52.7 | 49 | 2900 | 7.5 | 2.5 |
25 | 6.94 | 50 | 58 | |||||
32.5 | 9.03 | 45.5 | 59 | |||||
65-200A | 65 | 16.4 | 4.56 | 46.4 | 48 | 2900 | 7.5 | 2.5 |
23.5 | 6.53 | 44 | 57 | |||||
30.5 | 8.47 | 40 | 58 | |||||
65-200B | 65 | 15.2 | 4.22 | 40 | 55 | 2900 | 5.5 | 2.5 |
21.8 | 6.06 | 38 | ||||||
28.3 | 7.86 | 34.5 | ||||||
65-250 | 65 | 17.5 | 4.86 | 82 | 39 | 2900 | 15 | 2.5 |
25 | 6.94 | 80 | 50 | |||||
32.5 | 9.03 | 76.5 | 52 | |||||
65-250A | 65 | 16.4 | 4.56 | 71.5 | 39 | 2900 | 11 | 2.5 |
23.4 | 6.5 | 70 | 50 | |||||
30.5 | 8.47 | 67 | 52 | |||||
65-250B | 65 | 15 | 4.17 | 61 | 38 | 2900 | 11 | 2.5 |
21.6 | 6 | 60 | 49 | |||||
28 | 7.78 | 57.4 | 54 | |||||
65-315 | 65 | 17.5 | 4.86 | 127 | 32 | 2900 | 30 | 2.5 |
25 | 6.94 | 125 | 40 | |||||
32.5 | 9.03 | 122 | 44 | |||||
65-315A | 65 | 16.6 | 4.61 | 115 | 32 | 2900 | 22 | 2.5 |
23.7 | 6.58 | 113 | 40 | |||||
31 | 8.6 | 110 | 44 | |||||
65-315B | 65 | 15.7 | 4.36 | 103 | 39 | 2900 | 18.5 | 2.5 |
22.5 | 6.25 | 101 | ||||||
29.2 | 8 | 98 | ||||||
65-315C | 65 | 14.4 | 4 | 86 | 38 | 2900 | 15 | 2.5 |
20.6 | 5.72 | 85 | ||||||
26.8 | 7.44 | 83 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
65-100(I) | 65 | 35 | 9.72 | 13.8 | 67 | 2900 | 3 | 3 |
50 | 13.9 | 12.5 | 73 | |||||
65 | 18.1 | 10 | 70 | |||||
65-100(I)A | 65 | 31.3 | 8.7 | 11 | 66 | 2900 | 2.2 | 3 |
44.7 | 12.4 | 10 | 72 | |||||
58 | 16.1 | 8 | 69 | |||||
65-125(I) | 65 | 35 | 9.72 | 22 | 67 | 2900 | 5.5 | 3 |
50 | 13.9 | 20 | 72.5 | |||||
65 | 18.1 | 17 | 70 | |||||
65-125(I)A | 65 | 31.3 | 8.7 | 17.5 | 66 | 2900 | 4 | 3 |
44.7 | 12.5 | 16 | 71 | |||||
58 | 16.1 | 13.6 | 69 | |||||
65-160(I) | 65 | 35 | 9.72 | 35 | 63 | 2900 | 7.5 | 3 |
50 | 13.9 | 32 | 71 | |||||
65 | 18.1 | 28 | 70 | |||||
65-160(I)A | 65 | 32.7 | 9.1 | 30.6 | 62 | 2900 | 7.5 | 3 |
46.7 | 13 | 28 | 70 | |||||
61 | 16.9 | 24 | 69 | |||||
65-160(I)B | 65 | 30.3 | 8.4 | 26 | 69 | 2900 | 5.5 | 3 |
43.3 | 12 | 24 | ||||||
56.3 | 15.6 | 21 | ||||||
65-200(I) | 65 | 35 | 9.72 | 53.5 | 55 | 2900 | 15 | 3 |
50 | 13.9 | 50 | 67 | |||||
65 | 18.1 | 46 | 68 | |||||
65-200(I)A | 65 | 32.8 | 9.1 | 47 | 54 | 2900 | 11 | 3 |
47 | 13.1 | 44 | 66 | |||||
61 | 16.9 | 40 | 67 | |||||
65-200(I)B | 65 | 30.5 | 8.5 | 40.6 | 65 | 2900 | 7.5 | 3 |
43.5 | 12.1 | 38 | ||||||
56.6 | 15.7 | 33.4 | ||||||
65-250(I) | 65 | 35 | 9.72 | 83 | 52 | 2900 | 22 | 3 |
50 | 13.9 | 80 | 59 | |||||
65 | 18.1 | 72 | 60 | |||||
65-250(I)A | 65 | 32.5 | 9 | 73 | 52 | 2900 | 18.5 | 3 |
46.7 | 13 | 70 | 59 | |||||
61 | 16.9 | 63 | 60 | |||||
65-250(I)B | 65 | 30 | 8.3 | 62 | 58 | 2900 | 15 | 3 |
43.3 | 12 | 60 | ||||||
56 | 15.6 | 54 | ||||||
65-315(I) | 65 | 35 | 9.72 | 128 | 44 | 2900 | 37 | 3 |
50 | 13.9 | 125 | 54 | |||||
65 | 18.1 | 121 | 57 | |||||
65-315(I)A | 65 | 32.5 | 9 | 112.6 | 43 | 2900 | 30 | 3 |
46.5 | 12.9 | 110 | 54 | |||||
60.5 | 16.8 | 106.4 | 57 | |||||
65-315(I)B | 65 | 31 | 8.6 | 102.5 | 53 | 2900 | 30 | 3 |
44.5 | 12.4 | 100 | ||||||
58 | 16.1 | 98 | ||||||
65-315(I)C | 65 | 29 | 8.1 | 87 | 51 | 2900 | 22 | 3 |
41 | 11.4 | 85 | ||||||
53.6 | 14.9 | 83 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
80-100 | 80 | 35 | 9.72 | 13.8 | 67 | 2900 | 3 | 3 |
50 | 13.9 | 12.5 | 73 | |||||
65 | 18.1 | 10 | 70 | |||||
80-100A | 80 | 31.3 | 8.7 | 11 | 66 | 2900 | 2.2 | 3 |
44.7 | 12.5 | 10 | 72 | |||||
58 | 16.1 | 8 | 69 | |||||
80-125 | 80 | 35 | 9.72 | 22 | 67 | 2900 | 5.5 | 3 |
50 | 13.9 | 20 | 72.5 | |||||
65 | 18.1 | 17 | 70 | |||||
80-125A | 80 | 31.3 | 8.7 | 17.5 | 66 | 2900 | 4 | 3 |
45 | 12.5 | 16 | 71 | |||||
58 | 16.1 | 13.6 | 69 | |||||
80-160 | 80 | 35 | 9.72 | 35 | 63 | 2900 | 7.5 | 3 |
50 | 13.9 | 32 | 71 | |||||
65 | 18.1 | 28 | 70 | |||||
80-160A | 80 | 32.7 | 9.1 | 30.6 | 62 | 2900 | 7.5 | 3 |
46.7 | 13 | 28 | 70 | |||||
61 | 16.9 | 24 | 69 | |||||
80-160B | 80 | 30.3 | 8.4 | 26 | 69 | 2900 | 5.5 | 3 |
43.3 | 12 | 24 | ||||||
56.3 | 15.6 | 21 | ||||||
80-200 | 80 | 35 | 9.72 | 53.5 | 55 | 2900 | 15 | 3 |
50 | 13.9 | 50 | 67 | |||||
65 | 18.1 | 46 | 68 | |||||
80-200A | 80 | 32.8 | 9.1 | 47 | 54 | 2900 | 11 | 3 |
47 | 13.1 | 44 | 66 | |||||
61 | 16.9 | 40 | 67 | |||||
80-200B | 80 | 30.5 | 8.5 | 40.6 | 65 | 2900 | 7.5 | 3 |
43.5 | 12.1 | 38 | ||||||
56.6 | 15.7 | 33.4 | ||||||
80-250 | 80 | 35 | 9.72 | 83 | 52 | 2900 | 22 | 3 |
50 | 13.9 | 80 | 59 | |||||
65 | 18.1 | 72 | 60 | |||||
80-250A | 80 | 32.5 | 9 | 73 | 52 | 2900 | 18.5 | 3 |
46.7 | 13 | 70 | 59 | |||||
61 | 16.9 | 63 | 60 | |||||
80-250B | 80 | 30 | 8.3 | 62 | 58 | 2900 | 15 | 3 |
43.3 | 12 | 60 | ||||||
56 | 15.6 | 54 | ||||||
80-315 | 80 | 35 | 9.72 | 128 | 43 | 2900 | 37 | 3 |
50 | 13.9 | 125 | 54 | |||||
65 | 18.1 | 122 | 57 | |||||
80-315A | 80 | 32.5 | 9 | 112.6 | 43 | 2900 | 30 | 3 |
46.5 | 12.9 | 110 | 54 | |||||
60.5 | 16.8 | 107.4 | 57 | |||||
80-315B | 80 | 31 | 8.6 | 102.5 | 53 | 2900 | 30 | 3 |
44.5 | 12.4 | 100 | ||||||
58 | 16.1 | 98 | ||||||
80-315C | 80 | 29 | 8.1 | 98 | 51 | 2900 | 22 | 3 |
41 | 11.4 | 85 | ||||||
53.6 | 14.9 | 83 | ||||||
80-350 | 80 | 35 | 9.72 | 146 | 55 | 2900 | 55 | 3 |
50 | 13.9 | 150 | 66 | |||||
65 | 18.1 | 142 | 67 | |||||
80-350A | 80 | 31 | 8.6 | 138.4 | 65 | 2900 | 45 | 3 |
44.5 | 12.4 | 142 | ||||||
58 | 16.1 | 134.8 | ||||||
80-350B | 80 | 29 | 8.1 | 131.4 | 63 | 2900 | 37 | 3 |
41 | 11.4 | 135 | ||||||
53.6 | 14.9 | 127.8 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
80-100(I) | 80 | 70 | 19.4 | 13.6 | 66 | 2900 | 5.5 | 4.5 |
100 | 27.8 | 12.5 | 76 | |||||
130 | 36.1 | 11 | 75 | |||||
80-100(I)A | 80 | 62.6 | 17.4 | 11 | 64 | 2900 | 4 | 4.5 |
89 | 24.7 | 10 | 74 | |||||
116 | 32.2 | 8.8 | 74 | |||||
80-125(I) | 80 | 70 | 19.4 | 23.5 | 70 | 2900 | 11 | 4.5 |
100 | 27.8 | 20 | 76 | |||||
130 | 36.1 | 14 | 65 | |||||
80-125(I)A | 80 | 62.6 | 17.4 | 19 | 68 | 2900 | 7.5 | 4.5 |
89 | 24.7 | 16 | 74 | |||||
116 | 32.2 | 11 | 65 | |||||
80-160(I) | 80 | 70 | 19.4 | 36.5 | 70 | 2900 | 15 | 4.5 |
100 | 27.8 | 32 | 76 | |||||
130 | 36.1 | 24 | 65 | |||||
80-160(I)A | 80 | 65.4 | 18.2 | 32 | 68 | 2900 | 11 | 4.5 |
93.5 | 26 | 28 | 74 | |||||
121.6 | 33.8 | 21 | 67 | |||||
80-160(I)B | 80 | 60.6 | 16.8 | 72 | 72 | 2900 | 11 | 4.5 |
86.6 | 24.1 | 24 | ||||||
112.5 | 31.3 | 18 | ||||||
80-200(I) | 80 | 70 | 19.4 | 54 | 65 | 2900 | 22 | 4 |
100 | 27.8 | 50 | 74 | |||||
130 | 36.1 | 42 | 73 | |||||
80-200(I)A | 80 | 65.4 | 18.2 | 47.5 | 64 | 2900 | 18.5 | 4 |
93.5 | 26 | 44 | 73 | |||||
121.6 | 33.8 | 37 | 72 | |||||
80-200(I)B | 80 | 61 | 16.9 | 41 | 71 | 2900 | 15 | 4 |
87 | 24.2 | 38 | ||||||
113 | 31.4 | 32 | ||||||
80-250(I) | 80 | 70 | 19.4 | 87 | 62 | 2900 | 37 | 4 |
100 | 27.8 | 80 | 69 | |||||
130 | 36.1 | 68 | 68 | |||||
80-250(I)A | 80 | 65.4 | 18.2 | 76 | 61 | 2900 | 30 | 4 |
93.5 | 26 | 70 | 68 | |||||
121.6 | 33.8 | 59.5 | 67 | |||||
80-250(I)B | 80 | 61 | 16.9 | 65 | 66 | 2900 | 30 | 4 |
87 | 24.2 | 60 | ||||||
113 | 31.4 | 51 | ||||||
80-315(I) | 80 | 70 | 19.4 | 132 | 55 | 2900 | 75 | 4 |
100 | 27.8 | 125 | 66 | |||||
130 | 36.1 | 114 | 67 | |||||
80-315(I)A | 80 | 66.5 | 18.5 | 119 | 55 | 2900 | 55 | 4 |
95 | 26.4 | 113 | 66 | |||||
123.6 | 34.3 | 103 | 67 | |||||
80-315(I)B | 80 | 63 | 17.5 | 106.6 | 65 | 2900 | 45 | 4 |
90 | 25 | 101 | ||||||
117 | 32.5 | 92 | ||||||
80-315(I)C | 80 | 58 | 16.1 | 90 | 63 | 2900 | 37 | 4 |
82 | 22.8 | 85 | ||||||
107 | 29.7 | 76 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
100-100 | 100 | 70 | 19.4 | 13.6 | 66 | 2900 | 5.5 | 4.5 |
100 | 27.8 | 12.5 | 76 | |||||
130 | 36.1 | 11 | 75 | |||||
100-100A | 100 | 62.6 | 17.4 | 11 | 64 | 2900 | 4 | 4.5 |
89 | 47 | 10 | 74 | |||||
116 | 32.2 | 8.8 | 74 | |||||
100-125 | 100 | 70 | 19.4 | 23.5 | 70 | 2900 | 11 | 4.5 |
100 | 27.8 | 20 | 76 | |||||
130 | 36.1 | 14 | 65 | |||||
100-125A | 100 | 62.6 | 17.4 | 19 | 68 | 2900 | 7.5 | 4.5 |
89 | 24.7 | 16 | 74 | |||||
116 | 32.2 | 11 | 63 | |||||
100-160 | 100 | 70 | 19.4 | 36.5 | 70 | 2900 | 15 | 4.5 |
100 | 27.8 | 32 | 76 | |||||
130 | 36.1 | 24 | 65 | |||||
100-160A | 100 | 65.4 | 18.2 | 32 | 68 | 2900 | 11 | 4.5 |
93.5 | 26 | 28 | 74 | |||||
121.6 | 33.8 | 21 | 67 | |||||
100-160B | 100 | 60.6 | 16.8 | 27 | 72 | 2900 | 11 | 4.5 |
86.6 | 24.1 | 24 | ||||||
112.5 | 31.3 | 18 | ||||||
100-200 | 100 | 70 | 19.4 | 54 | 65 | 2900 | 22 | 4 |
100 | 27.8 | 50 | 74 | |||||
130 | 36.1 | 42 | 73 | |||||
100-200A | 100 | 65.4 | 18.2 | 47.5 | 64 | 2900 | 18.5 | 4 |
93.5 | 26 | 44 | 73 | |||||
121.6 | 33.8 | 37 | 72 | |||||
100-200B | 100 | 61 | 16.9 | 41 | 71 | 2900 | 15 | 4 |
87 | 24.2 | 38 | ||||||
113 | 31.4 | 32 | ||||||
100-250 | 100 | 70 | 19.4 | 37 | 62 | 2900 | 37 | 4 |
100 | 27.8 | 80 | 69 | |||||
130 | 36.1 | 68 | 68 | |||||
100-250A | 100 | 65.4 | 18.2 | 76 | 61 | 2900 | 30 | 4 |
93.5 | 26 | 70 | 68 | |||||
121.6 | 33.8 | 59.5 | 67 | |||||
100-250B | 100 | 61 | 16.9 | 65 | 66 | 2900 | 30 | 4 |
87 | 24.2 | 60 | ||||||
113 | 31.4 | 51 | ||||||
100-315 | 100 | 70 | 19.4 | 132 | 55 | 2900 | 75 | 4 |
100 | 27.8 | 125 | 66 | |||||
130 | 36.1 | 114 | 67 | |||||
100-315A | 100 | 66.5 | 18.5 | 119 | 65 | 2900 | 55 | 4 |
95 | 26.4 | 113 | 66 | |||||
123.6 | 34.3 | 103 | 67 | |||||
100-315B | 100 | 63 | 17.5 | 106.6 | 65 | 2900 | 45 | 4 |
90 | 25 | 101 | ||||||
117 | 32.5 | 92 | ||||||
100-315C | 100 | 58 | 16.1 | 90 | 63 | 2900 | 37 | 4 |
82 | 22.8 | 85 | ||||||
107 | 29.7 | 76 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
100-100(I) | 100 | 96 | 26.7 | 14 | 64 | 2900 | 11 | 4.5 |
160 | 44.4 | 12.5 | 73 | |||||
192 | 53.3 | 10 | 70 | |||||
100-125(I) | 100 | 96 | 26.7 | 24 | 62 | 2900 | 15 | 4.5 |
160 | 44.4 | 20 | 74 | |||||
192 | 53.3 | 14 | 69 | |||||
100-125(I)A | 100 | 84 | 23.3 | 20 | 64 | 2900 | 11 | 4.5 |
140 | 39 | 17 | 72 | |||||
168 | 46.7 | 12 | 68 | |||||
100-160(I) | 100 | 96 | 26.7 | 36 | 69 | 2900 | 22 | 5.6 |
160 | 44.4 | 32 | 79 | |||||
192 | 53.3 | 27 | 75 | |||||
100-160(I)A | 100 | 84 | 23.3 | 32 | 66 | 2900 | 18.5 | 5 |
140 | 39 | 28 | 76 | |||||
168 | 46.7 | 23.5 | 72 | |||||
100-200(I) | 100 | 96 | 26.7 | 53 | 69 | 2900 | 37 | 5.2 |
160 | 44.4 | 50 | 79 | |||||
192 | 53.3 | 45 | 78 | |||||
100-200(I)A | 100 | 84 | 23.3 | 48 | 64 | 2900 | 30 | 4.5 |
140 | 39 | 45 | 74 | |||||
168 | 46.7 | 40 | 73 | |||||
100-200(I)B | 100 | 60 | 16.7 | 43 | 72 | 2900 | 22 | 4.5 |
100 | 27.8 | 40 | ||||||
120 | 33.3 | 36 | ||||||
100-250(I) | 100 | 96 | 26.7 | 83 | 65 | 2900 | 55 | 4.8 |
160 | 44.4 | 80 | 77 | |||||
192 | 53.3 | 72 | 74 | |||||
100-250(I)A | 100 | 84 | 23.3 | 75 | 60 | 2900 | 45 | 4.5 |
140 | 39 | 72 | 72 | |||||
168 | 46.7 | 65 | 69 | |||||
100-250(I)B | 100 | 60 | 16.7 | 68 | 70 | 2900 | 37 | 4.5 |
100 | 27.8 | 65 | ||||||
120 | 33.3 | 58 | ||||||
100-350 | 100 | 60 | 16.7 | 153.6 | 72 | 2900 | 90 | 4 |
100 | 27.8 | 150 | 57 | |||||
120 | 33.3 | 142 | 74 | |||||
100-350A | 100 | 61 | 16.9 | 145.6 | 75 | 2900 | 75 | 4 |
87 | 24.2 | 142 | ||||||
113 | 31.4 | 134 | ||||||
100-350B | 100 | 58 | 16.1 | 138.6 | 75 | 2900 | 55 | 4 |
82 | 22.8 | 135 | ||||||
107 | 29.7 | 127 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
125-100 | 125 | 96 | 26.7 | 13 | 82 | 2900 | 11 | 4 |
160 | 44.4 | 12.5 | ||||||
192 | 53.3 | 12 | ||||||
125-100A | 125 | 86 | 23.9 | 10.4 | 77 | 2900 | 7.5 | 4 |
143 | 39.7 | 10 | ||||||
172 | 47.8 | 9.6 | ||||||
125-125 | 125 | 96 | 26.7 | 22.6 | 80 | 2900 | 15 | 4 |
160 | 44.4 | 20 | ||||||
192 | 53.3 | 17 | ||||||
125-125A | 125 | 86 | 23.9 | 18 | 77 | 2900 | 11 | 4 |
143 | 39.7 | 16 | ||||||
172 | 47.8 | 13.6 | ||||||
125-160 | 125 | 96 | 26.7 | 36 | 78 | 2900 | 22 | 4 |
160 | 44.4 | 32 | ||||||
192 | 53.3 | 28 | ||||||
125-160A | 125 | 90 | 25 | 31.5 | 76 | 2900 | 18.5 | 4 |
150 | 41.7 | 28 | ||||||
180 | 50 | 24.5 | ||||||
125-160B | 125 | 83 | 21.7 | 27 | 73 | 2900 | 15 | 4 |
138 | 38.3 | 24 | ||||||
166 | 46.1 | 21 | ||||||
125-200 | 125 | 96 | 26.7 | 55 | 77 | 2900 | 37 | 5.5 |
160 | 44.4 | 50 | ||||||
192 | 53.3 | 46 | ||||||
125-200A | 125 | 90 | 25 | 48.4 | 76 | 2900 | 30 | 5.5 |
150 | 41.7 | 44 | ||||||
180 | 50 | 40.5 | ||||||
125-200B | 125 | 83 | 21.7 | 41.3 | 75 | 2900 | 22 | 5.5 |
138 | 38.3 | 37.5 | ||||||
166 | 46.1 | 34.5 | ||||||
125-250 | 125 | 96 | 26.7 | 87 | 75 | 2900 | 55 | 5 |
160 | 44.4 | 80 | ||||||
192 | 53.3 | 73 | ||||||
125-250A | 125 | 90 | 25 | 76 | 74 | 2900 | 45 | 5.5 |
150 | 41.7 | 70 | ||||||
180 | 50 | 84 | ||||||
125-250B | 125 | 83 | 21.7 | 65 | 73 | 2900 | 37 | 5.5 |
138 | 38.3 | 60 | ||||||
166 | 46.1 | 55 | ||||||
125-315 | 125 | 96 | 26.7 | 133 | 70 | 2900 | 90 | 5 |
160 | 44.7 | 125 | ||||||
192 | 53.3 | 119 | ||||||
125-315A | 125 | 90 | 25 | 117 | 70 | 2900 | 75 | 5 |
150 | 41.7 | 110 | ||||||
180 | 50 | 104.6 | ||||||
125-315B | 125 | 86 | 23.9 | 106.4 | 69 | 2900 | 75 | 5 |
143 | 39.7 | 100 | ||||||
172 | 47.8 | 95.2 | ||||||
125-315C | 125 | 80.5 | 22.4 | 96 | 67 | 2900 | 55 | 5 |
134 | 37.2 | 88 | ||||||
161 | 44.7 | 86 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
150-125 | 150 | 96 | 26.7 | 22.6 | 66 | 2900 | 11 | 4 |
160 | 44.4 | 24 | 76 | |||||
192 | 53.3 | 17 | 76 | |||||
150-125A | 150 | 90 | 25 | 18 | 77 | 2900 | 7.5 | 4 |
150 | 41.7 | 16 | ||||||
180 | 50 | 13.6 | ||||||
150-160 | 150 | 96 | 26.7 | 36 | 75 | 2900 | 22 | 4 |
160 | 44.4 | 32 | ||||||
192 | 53.3 | 27 | ||||||
150-160A | 150 | 90 | 25 | 32 | 76 | 2900 | 18.5 | 4 |
150 | 41.7 | 28 | ||||||
180 | 50 | 23.5 | ||||||
150-160B | 150 | 84 | 23.3 | 27 | 73 | 2900 | 15 | 4 |
140 | 39 | 24 | ||||||
168 | 46.7 | 21 | ||||||
150-200 | 150 | 140 | 38.9 | 13.8 | 68 | 1450 | 15 | 3 |
200 | 55.6 | 12.5 | 78 | |||||
260 | 72.2 | 10.6 | 78 | |||||
150-200A | 150 | 125 | 34.7 | 11 | 66 | 1450 | 11 | 3 |
176 | 49.7 | 10 | 76 | |||||
232.5 | 64.6 | 8.5 | 76 | |||||
150-200B | 150 | 84 | 23.3 | 41 | 75 | 2900 | 22 | 4 |
140 | 39 | 38 | ||||||
168 | 46.7 | 34 | ||||||
150-250 | 150 | 140 | 38.9 | 21.8 | 73 | 1450 | 18.5 | 3 |
200 | 55.6 | 20 | 79 | |||||
260 | 72.2 | 17 | 77 | |||||
150-250A | 150 | 129 | 35.8 | 18.5 | 72 | 1450 | 15 | 3 |
184.4 | 51.2 | 17 | 78 | |||||
240 | 66.7 | 14.4 | 76 | |||||
150-250B | 150 | 117 | 32.5 | 15.2 | 76 | 1450 | 11 | 3 |
167 | 46.4 | 14 | ||||||
217.5 | 60.4 | 12 | ||||||
150-315 | 150 | 140 | 38.9 | 33.8 | 70 | 1450 | 30 | 2.5 |
200 | 55.6 | 32 | 78 | |||||
260 | 72.2 | 28 | 73 | |||||
150-315A | 150 | 131 | 36.4 | 29.5 | 69 | 1450 | 22 | 3.5 |
187 | 51.9 | 28 | 77 | |||||
243 | 67.5 | 24.5 | 77 | |||||
150-315B | 150 | 121 | 33.5 | 25 | 76 | 1450 | 18.5 | 3.5 |
173 | 48.1 | 24 | ||||||
225 | 62.5 | 21 | ||||||
150-350 | 150 | 96 | 26.7 | 153.6 | 80 | 2900 | 110 | 5.5 |
160 | 44.4 | 150 | ||||||
192 | 53.3 | 142.8 | ||||||
150-350A | 150 | 90 | 25 | 145.6 | 70 | 2900 | 90 | 5.2 |
150 | 41.7 | 142 | ||||||
180 | 50 | 134.8 | ||||||
150-350B | 150 | 84 | 23.3 | 138.6 | 65 | 2900 | 75 | 5.5 |
140 | 39 | 135 | 76 | |||||
168 | 46.7 | 127.8 | 74 | |||||
150-400 | 150 | 140 | 38.9 | 53 | 68 | 1450 | 45 | 3.5 |
200 | 55.6 | 50 | 75 | |||||
260 | 72.2 | 44 | 71 | |||||
150-400A | 150 | 131 | 36.4 | 46.6 | 67 | 1450 | 37 | 3.5 |
187 | 51.9 | 44 | 74 | |||||
243 | 67.5 | 38.3 | 70 | |||||
150-400B | 150 | 122 | 33.9 | 40 | 73 | 1450 | 30 | 3.5 |
174 | 48.3 | 38 | ||||||
226.5 | 62.9 | 33 | ||||||
150-400C | 150 | 112 | 31.1 | 34 | 71 | 1450 | 22 | 3.5 |
160 | 44.4 | 32 | ||||||
208 | 57.8 | 28 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
150-250(I) | 150 | 120 | 33.3 | 87 | 65 | 2900 | 75 | 4.5 |
200 | 55.6 | 80 | 76 | |||||
240 | 66.7 | 72 | 74 | |||||
150-250(I)A | 150 | 112 | 31.1 | 76 | 64 | 2900 | 55 | 4.5 |
187 | 51.9 | 70 | 75 | |||||
224 | 62.2 | 63 | 73 | |||||
150-250(I)B | 150 | 104 | 28.9 | 65 | 63 | 2900 | 45 | 4.5 |
173 | 48.1 | 60 | 74 | |||||
208 | 57.8 | 54 | 72 | |||||
150-315(I) | 150 | 120 | 33.3 | 133 | 58 | 2900 | 110 | 4.5 |
200 | 55.6 | 125 | 73 | |||||
240 | 66.7 | 120 | 75 | |||||
150-315(I)A | 150 | 112 | 31.1 | 116 | 57 | 2900 | 90 | 4.5 |
187 | 51.9 | 110 | 72 | |||||
224 | 62.2 | 105 | 74 | |||||
150-315(I)B | 150 | 104 | 28.9 | 100 | 55 | 2900 | 75 | 4.5 |
173 | 48.1 | 95 | 70 | |||||
208 | 57.8 | 91 | 72 | |||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
200-200 | 200 | 140 | 38.9 | 13.8 | 68 | 1450 | 15 | 3 |
200 | 55.6 | 12.5 | 78 | |||||
260 | 72.2 | 10.6 | 78 | |||||
200-200A | 200 | 125 | 34.7 | 11 | 66 | 1450 | 11 | 3 |
179 | 49.7 | 10 | 76 | |||||
232.5 | 64.6 | 8.5 | 76 | |||||
200-250 | 200 | 140 | 21.8 | 21.8 | 73 | 1450 | 18.5 | 3 |
200 | 20 | 20 | 79 | |||||
260 | 17 | 17 | 77 | |||||
200-250A | 200 | 129 | 18.5 | 18.5 | 72 | 1450 | 15 | 3 |
184.4 | 17 | 17 | 78 | |||||
240 | 14.4 | 14.4 | 76 | |||||
200-250B | 200 | 117 | 15.2 | 15.2 | 76 | 1450 | 11 | 3 |
167 | 14 | 14 | ||||||
217.5 | 12 | 12 | ||||||
200-315 | 200 | 140 | 33.8 | 33.8 | 70 | 1450 | 30 | 3.5 |
200 | 32 | 32 | 78 | |||||
260 | 28 | 28 | 78 | |||||
200-315A | 200 | 131 | 29.5 | 29.5 | 69 | 1450 | 22 | 3.5 |
189 | 28 | 28 | 77 | |||||
243 | 24.5 | 24.5 | 77 | |||||
200-315B | 200 | 121 | 25 | 25 | 76 | 1450 | 18.5 | 3.5 |
173 | 24 | 24 | ||||||
225 | 21 | 21 | ||||||
200-400 | 200 | 140 | 53 | 53 | 68 | 1450 | 45 | 3.5 |
200 | 50 | 50 | 75 | |||||
260 | 44 | 44 | 71 | |||||
200-400A | 200 | 131 | 46.6 | 46.6 | 67 | 1450 | 37 | 3.5 |
187 | 44 | 44 | 74 | |||||
243 | 38.3 | 38.3 | 70 | |||||
200-400B | 200 | 122 | 40 | 40 | 73 | 1450 | 30 | 3.5 |
174 | 38 | 38 | ||||||
226.5 | 33 | 33 | ||||||
200-400C | 200 | 112 | 34 | 34 | 71 | 1450 | 22 | 3.5 |
160 | 32 | 32 | ||||||
208 | 28 | 28 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
200-500 | 200 | 210 | 58.3 | 85 | 70.2 | 1450 | 110 | 4.5 |
300 | 83.3 | 80 | ||||||
360 | 100 | 73 | ||||||
200-500A | 200 | 196 | 54.4 | 74 | 69.3 | 1450 | 90 | 4.5 |
280 | 77.8 | 70 | ||||||
336 | 93.3 | 64 | ||||||
200-500B | 200 | 182 | 50.6 | 64 | 68.3 | 1450 | 75 | 4.5 |
262 | 72.8 | 60 | ||||||
312 | 86.7 | 54 | ||||||
200-500C | 200 | 171 | 47.5 | 56 | 67.4 | 1450 | 55 | 4.5 |
245 | 68.1 | 52 | ||||||
294 | 81.7 | 48 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
200-200(I) | 200 | 280 | 77.8 | 13.4 | 70 | 1450 | 22 | 4 |
400 | 111.1 | 12.5 | 80 | |||||
520 | 144 | 10.5 | 79 | |||||
200-200(I)A | 200 | 250 | 69.4 | 10.7 | 68 | 1450 | 18.5 | 4 |
358 | 90.4 | 10 | 73 | |||||
465 | 129.2 | 8.5 | 77 | |||||
200-250(I) | 200 | 280 | 77.8 | 22.2 | 75 | 1450 | 30 | 4 |
400 | 111.1 | 20 | 80 | |||||
520 | 144 | 14 | 72 | |||||
200-250(I)A | 200 | 250 | 69.4 | 18 | 73 | 1450 | 22 | 4 |
358 | 99.4 | 16 | 78 | |||||
465 | 129.2 | 11.2 | 70 | |||||
200-250(I)B | 200 | 226 | 62.8 | 14.4 | 70 | 1450 | 18.5 | 4 |
322 | 89.4 | 13 | 75 | |||||
419 | 116.4 | 7.3 | 67 | |||||
200-315(I) | 200 | 280 | 77.8 | 36 | 73 | 1450 | 55 | 4 |
400 | 111.4 | 32 | 80 | |||||
520 | 144 | 26 | 75 | |||||
200-315(I)A | 200 | 262 | 72.8 | 31.5 | 72 | 1450 | 45 | 4 |
374 | 103.9 | 28 | 79 | |||||
486 | 135 | 23 | 74 | |||||
200-315(I)B | 200 | 242 | 67.3 | 27 | 78 | 1450 | 37 | 4 |
346 | 96.1 | 24 | ||||||
450 | 125 | 19.5 | ||||||
200-400(I) | 200 | 280 | 77.8 | 54.5 | 75 | 1450 | 75 | 4 |
400 | 111.4 | 50 | 81 | |||||
520 | 144 | 39 | 77 | |||||
200-400(I)A | 200 | 262 | 72.8 | 48 | 80 | 1450 | 75 | 4 |
374 | 103.9 | 44 | ||||||
486 | 135 | 34 | ||||||
200-400(I)B | 200 | 242 | 67.2 | 41.4 | 78 | 1450 | 55 | 5 |
346 | 96.1 | 38 | ||||||
450 | 125 | 29.6 | ||||||
200-400(I)C | 200 | 224 | 62.2 | 34.9 | 76 | 1450 | 45 | 5 |
320 | 88.9 | 32 | ||||||
416 | 115.6 | 25 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
200-500(I) | 200 | 280 | 77.8 | 85 | 73.4 | 1450 | 132 | 4 |
400 | 111 | 80 | ||||||
520 | 144 | 70 | ||||||
200-500(I)A | 200 | 262 | 72.8 | 74.4 | 72.5 | 1450 | 110 | 4 |
374 | 103 | 70 | ||||||
486 | 135 | 61.2 | ||||||
200-500(I)B | 200 | 242 | 67.2 | 63.8 | 71.5 | 1450 | 90 | 4 |
346 | 96.1 | 60 | ||||||
450 | 125 | 52.5 | ||||||
200-500(I)C | 200 | 224 | 62.2 | 53.2 | 70.6 | 1450 | 75 | 4 |
320 | 88.9 | 50 | ||||||
416 | 115 | 43.8 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
250-250 | 250 | 350 | 97.2 | 22 | 78 | 1450 | 45 | 5 |
550 | 152.8 | 20 | 82 | |||||
650 | 180.5 | 16 | 81 | |||||
250-250A | 250 | 300 | 83.3 | 18.3 | 76 | 1450 | 37 | 5 |
500 | 139 | 17 | 80 | |||||
600 | 166.7 | 14 | 80 | |||||
250-235 | 250 | 300 | 83.3 | 14 | 73 | 1480 | 22 | 4.5 |
500 | 139 | 12.5 | 78 | |||||
600 | 166.7 | 11 | 70 | |||||
250-300 | 250 | 300 | 83.3 | 22 | 78 | 1480 | 37 | 4.5 |
500 | 139 | 20 | ||||||
600 | 166.7 | 16 | ||||||
250-315 | 250 | 350 | 97.2 | 34 | 76 | 1450 | 75 | 5.5 |
550 | 152.8 | 32 | 80 | |||||
650 | 180.5 | 28 | 79 | |||||
250-315A | 250 | 300 | 83.3 | 29.5 | 74 | 1450 | 55 | 5.5 |
500 | 139 | 28 | 78 | |||||
600 | 166.7 | 24 | 77 | |||||
250-315B | 250 | 260 | 72.2 | 25 | 70 | 1450 | 45 | 5.5 |
450 | 125 | 24 | 74 | |||||
520 | 144.4 | 20 | 72 | |||||
250-400 | 250 | 300 | 83.3 | 54.5 | 72 | 1480 | 90 | 4.5 |
500 | 139 | 50 | ||||||
600 | 166.7 | 39 | ||||||
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | |
300-235 | 300 | 480 | 133.3 | 20 | 77 | 970 | 55 | 5 |
720 | 200 | 18 | 81 | |||||
900 | 250 | 15.5 | 74 | |||||
300-235A | 300 | 438 | 121.7 | 16.5 | 75 | 970 | 45 | 5 |
607 | 182.5 | 15 | 79 | |||||
821 | 228.1 | 13 | 72 | |||||
300-235B | 300 | 400 | 111.1 | 14 | 73 | 970 | 37 | 5 |
600 | 167 | 12.5 | 77 | |||||
750 | 208.3 | 11 | 70 | |||||
300-300 | 300 | 480 | 133.3 | 31 | 77 | 970 | 75 | 5 |
720 | 200 | 28 | 81 | |||||
900 | 250 | 25 | 77 | |||||
300-300A | 300 | 444 | 123.3 | 26.5 | 76 | 970 | 75 | 5 |
666 | 185 | 24 | 80 | |||||
833 | 231.4 | 21.5 | 76 | |||||
300-300B | 300 | 415 | 115.3 | 23 | 79 | 970 | 55 | 5 |
623 | 173.1 | 21 | ||||||
779 | 261.4 | 18.5 | ||||||
300-380 | 300 | 480 | 133.3 | 48 | 84 | 970 | 132 | 5 |
720 | 200 | 44 | ||||||
900 | 250 | 34 | ||||||
300-380A | 300 | 444 | 123.3 | 41.4 | 80 | 970 | 110 | 5 |
666 | 185 | 38 | ||||||
833 | 231.4 | 30 | ||||||
300-380B | 300 | 409 | 113.6 | 35 | 78 | 970 | 90 | 5 |
614 | 170.6 | 32 | ||||||
767 | 213.1 | 25 | ||||||
300-235(I) | 300 | 718 | 199.4 | 44.6 | 82 | 1450 | 160 | 5.5 |
1080 | 300 | 40 | ||||||
1345 | 373.6 | 34.6 | ||||||
300-235(I)A | 300 | 642 | 178.3 | 35.7 | 80 | 1450 | 132 | 5.5 |
965 | 268.1 | 32 | ||||||
1203 | 334.2 | 27.7 |
1、ISG型立式管道離心泵,供輸送清水及物理化學性質類似于清水的其他液體之用,適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套,使用溫度T<80℃。
2、IRG(GRG)型立式熱水(高溫)循環泵廣泛適用于:能源、冶金、化工、紡織、造紙,以及賓館飯店等鍋爐高溫熱水增壓循環輸送及城市采用暖系統循環用泵,IRG型使用溫度T<120℃,珀GRG型使用溫度T<240℃。
3、IHG型立式管道化工泵,供輸送不含固體顆粒,具有腐蝕性,粘度類似于水的液體,適用于石油、化工、冶金、電力、造紙、食品制藥和合成纖維等部門,使用溫度為20℃~+120℃。
4、YG型立式管道油泵,供輸送汽油、煤油、柴油等石油產品,被輸送介質溫度為-20℃~+120℃。
暫無資料
·相關產品
·相關文章
- 2020-09-25購買離心泵選哪家?中佰泵業值得你選擇
- 2020-06-05離心泵的使用方法有哪些?
- 2020-04-29為什么離心泵進水管和泵體內會(huì )有空氣呢?
- 2020-04-06全優技術制作離心泵重慶中佰泵業緊握核心技術
- 2020-03-10轉子泵和離心泵、螺桿泵有什么區別
- 2020-02-29多級離心泵出故障了該如何解決?
- 2020-01-09離心泵的組成部分有哪些
- 2019-11-25多級離心泵故障排除方法
- 2019-11-18破解秸稈直焚難題 燃煤耦合生物質發電迎來新機遇
- 2019-10-29離心泵在水塔使用時如何選擇
·最新文章
- 2021-04-16重慶中佰泵業立志打造優良排污泵,為社會(huì )貢獻力量
- 2021-04-16你的真空泵出問題了?有沒有遇到以下這些故障
- 2021-04-16怎樣安裝齒輪油泵?安裝需求有哪些?
- 2021-01-12重慶中佰泵業——春節放假通知
- 2020-12-31重慶中佰泵業元旦節放假通知
- 2020-10-09液下泵發展前景廣闊,重慶中佰泵業走在行業前端
- 2020-10-09多級泵效率低?建議考慮一下這幾條原因
- 2020-10-09使用潛水泵的三大禁忌,希望你能了解
- 2020-09-25怎樣避免磁力泵空轉?為什么磁力泵會(huì )空轉?
- 2020-09-25中佰泵業研發優質供水設備,引領創(chuàng )新市場
- 客服熱線:
023-68691718 - 圖文傳真:
023-68691758 - 電子郵箱:
zobpump@126.com
版權所有:重慶中佰泵業有限責任公司 渝ICP備18010238號-1 Sitemap
